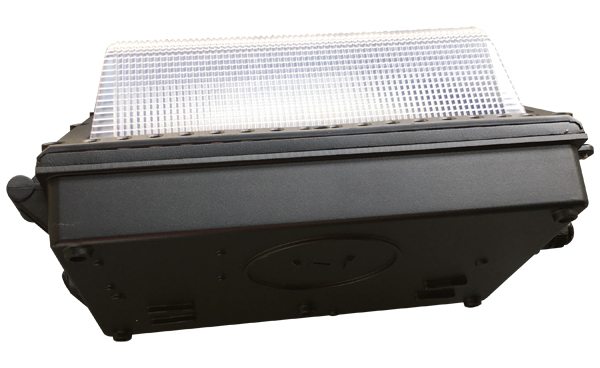

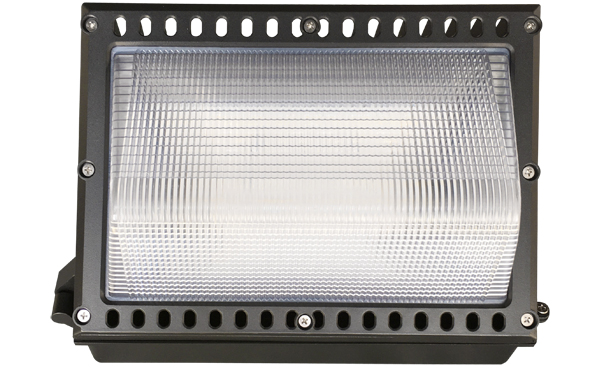

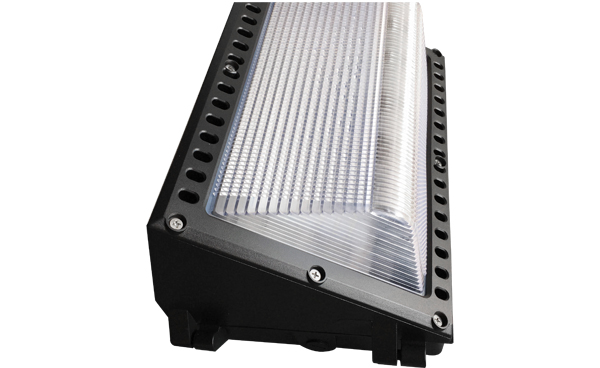

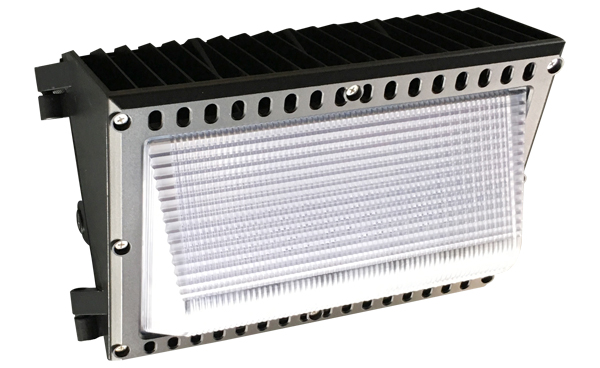

100W Wall Pack Light

WALL PACK LAMP----- SA-WP100

50W,60W,80W,100W &120W

WALL PACK LAMP SERIES

Wall Pack Lamp took power saving for outdoor light application to next level with >110lm/W efficacy.

Wall Pack Lamp modern design with superior thermal management and high efficiency, high luminous chip packages.

BEAM ANGLE

                                                            COLOUR OPTIONS

DRIVER

                                                         ACCESSORIES

TEMPERATURE

2700-3500K,4000-5000K,5000-5500K

LED MODULE

SA-WP100  (100W)

TECHNICAL DATA

-      Compact, light weight, stylish construction

-      Colour temperature options: 2700K,3000K, 3500K,4000K,4500K,5000K,6500K

-       Colour rendering index, ProArt Ra~80, Standard Ra~75

-       Up to 50,000 hours L70 lam life with LM80 tested LED chip packages

-       Beam pattern options: 90°

-       Luminous flux: 11,000lm to 13,000lm (depending on LED module)

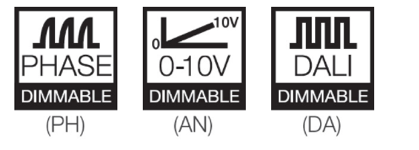

-       Supplied with phase, 0-10V, DALI dimmable, with local dimming features

-       Full angle adjustable

-       Top brand driver Meanwell

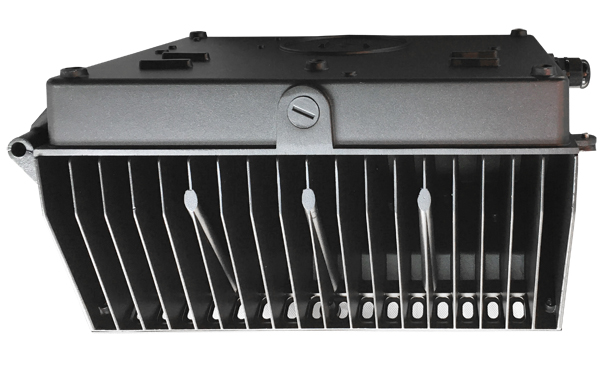

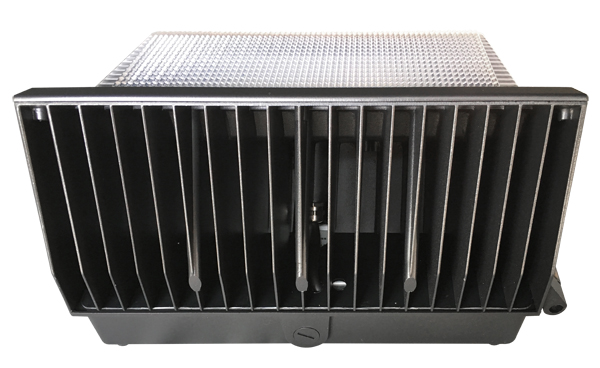

-       Die-casting Aluminum Thermal dissipation

-       Interchangeable LED module system

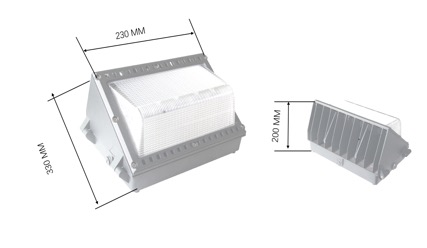

DIMENSIONS (MM)

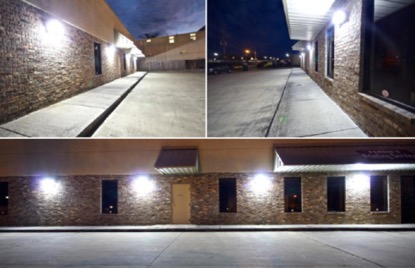

CASE EXAMPLE
